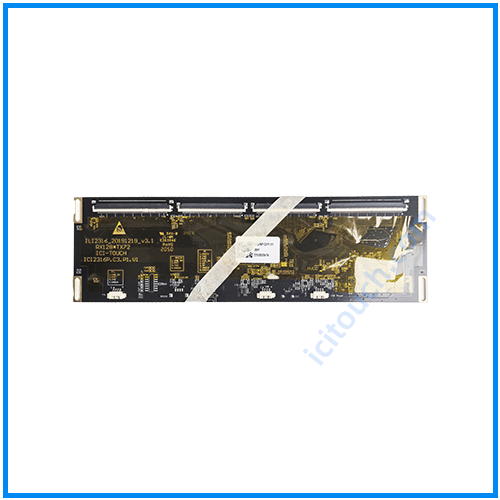

| Touch C/B | ICI2316P.C3.P1.V1 | ICI2316P.C3.P2.V1 |
| Board Size | L=200mm,W=60mm | L=176mm,W=63mm |
| Channels | RX128*TX72 | RX134*TX76 |
| Host Interface | USB+I2C+RS232 | USB+I2C+UART |
| FPC Connector | 80*68*68*80 pin_0.5 Pitch | 80*80*80 pin_0.5 Pitch |
| GND Gasket | Yes | Yes |
| Support Size | 32”~55” | 32”~55” |
| Support Max Points | 40 | 40 |
| CS Noise Immunity | 10Vrms | 10Vrms |
| RS Noise Immunity | 30V/m | 30V/m |
| EFT Noise Immunity | 4kV | 4kV |
| Finger Report Rate (9mm) | Typ.120Hz@10-finger | Typ.120Hz@10-finger |
| Passive Pen Report Rate (6mm) | Typ.120 Hz | Typ.120 Hz |
